RaySat SR240  VSAT Tx / Rx天线
产品说明
2.4米双反射器C-,扩展C-,Ku波段

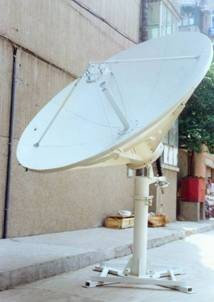

RaySat SR240  2.4m卫星通信天线





2.4- Meter Dual-Reflector C-, Extended C-, Ku-Band

As adopted the theory of Com-Ring Focus to design and the superior precision means to manufacture and test, RaySat SR240  antenna has good RF and mechanical specifications and many other synthesized comprehensive virtues.


dian.gif.GIF (125 bytes) framework of fastness and stabilization to the antenna can bear the survival wind speed of 55m/s.
dian.gif.GIF (125 bytes) favorable withstanding erosion and rust capability as aluminum materials to be used and the coat of all of steel parts to be processed by heating soak zinc.
dian.gif.GIF (125 bytes) every parts have highly processed precision and no need marks on the parts when installing, it will not bring to reduce the precision for whole of antenna when installing repeated.
dian.gif.GIF (125 bytes) especially noted for extremely convenient to install it, easy and fast to aim it at the satellite.



reflector ----8 pieces, made of alloy-aluminum, painting white color.
dian.gif.GIF (125 bytes) radial ---- 8 pieces, made of steel plate, coat by heating soak zinc.
dian.gif.GIF (125 bytes) hub ---- made of steel, coat by heating soak zinc.
dian.gif.GIF (125 bytes) pedestal ---- made of steel, surface processed by heating soak zinc.
dian.gif.GIF (125 bytes) OMT ---- aluminum casting, anodized coat, with transmit reject filter.
dian.gif.GIF (125 bytes) feed-horn ---- ripple type, aluminum casting, anodized coat.
dian.gif.GIF (125 bytes) adjust mode ---- manual, self-existent EL axis and AZ axis to be adjusted with EL leading screw and AZ turnable part with lock screw.




dian.gif.GIF (125 bytes) Waveguide to coaxial adapter with N type connector (F)
