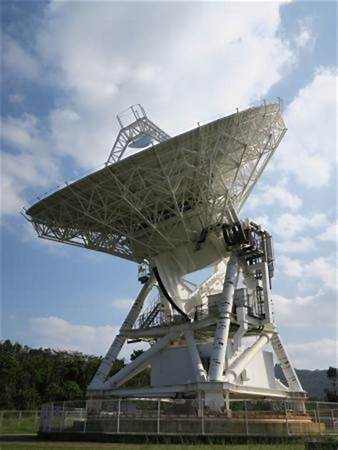

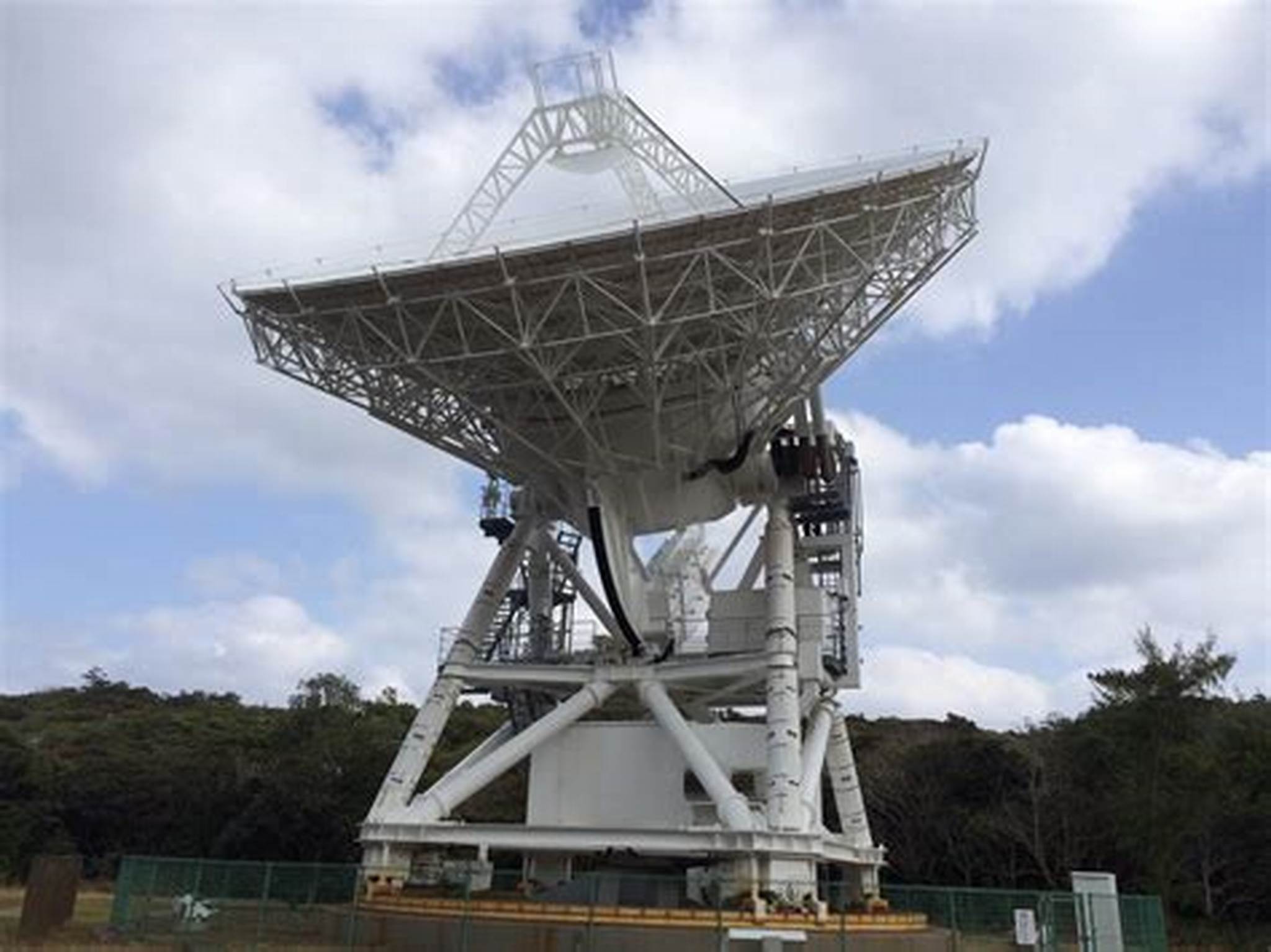

KVH 20米X波段卫星通信地球站天线
20米X通信卫星天线
20m X-Band ANTENNA




20m X-Band ANTENNA (OEM)

概观



20M天线系统采用CAD设计和制造,可应用于最新更新的INTELSAT(IESS)标准A地球站。

20M天线系统包括双形状卡塞格林反射器,带波纹喇叭的频率重用馈电网络,用于极限运动的仰角方位限制运动主柱基座或用于全运动的转盘安装座。反射器的备用结构,连接主反射器和底座的基座以及基座提供了正常操作所需的保证指向精度。

主反射器直径包括精密拉伸成型铝板,铆接环和三个环中的径向。

天线系统具有高增益,低旁瓣,低交叉极化的特点,能够在发射和接收频带中进行频率重用,具有高分辨率角度位置显示的高驱动/控制精度。

辐射方向图符合INTELSAT(IESS),FCC和CCIR对地静止卫星2度间隔位置的相关要求。





R.F Specifications

20M GREGORAIN

ANTENNA

With 4-PORT 2Tx/2Rx Circular Pol FEED

X-Band

Receive

Transmit

Frequency in GHz

7.25-7.75

7.9-8.4Ghz

Gain

61.7+

20lg[f(GHz)/7.5]

62.5 +

20lg[f(GHz)/8.25]

Antenna Noise Temp.



5°Elevation

74k with TRF

10°Elevation

65k with TRF

20°Elevation

58k with TRF

40°Elevation

54k with TRF

Sidelobe Pattern

First sidelobe level ≤-14dB Beyond first sidelobe

meet IESS(Intelsat) or CCIR 580

VSWR

1.25:1

Axial Ratio (CP only)

1.09:1

1.09:1

3dB Beamwidth

0.14Deg

0.127Deg

Polarization

RHCP/LHCP

LHCP/RHCP

Feed Insertion or Ohmic

Loss

0.70 dB

0.70dB

Power Handling

Capability

1kw cw

Port to Port Isolation



Tx to Rx

³70dB(with TRF)

Rx to Rx

³20dB

Tx to Tx

³20dB

Feed Interfaces

WR112

WR112

R.F Specifications

16M Dual Shaped

Cassegrain Antenna With 4-PORT 2Tx/2Rx Circular Pol Feed

X-Band

Receive

Transmit

Frequency in GHz

7.25-7.75

7.9-8.4Ghz

Gain

59.7+

20lg[f(GHz)/7.5]

60.5 +

20lg[f(GHz)/8.25]

Antenna Noise Temp.



5°Elevation

74k with TRF

10°Elevation

65k with TRF

20°Elevation

58k with TRF

40°Elevation

54k with TRF

Sidelobe Pattern

First sidelobe level ≤-14dB Beyond first sidelobe

meet IESS(Intelsat) or CCIR 580

VSWR

1.25:1

1.25:1

3dB Beamwidth

0.175Deg

0.159Deg

Axial Ratio (CP only)

1.09:1

1.09:1

Feed Insertion or Ohmic

Loss

0.70dB

0.70dB

Power Handling

Capability

1kw

Port to Port Isolation



Tx to Rx

³70dB(with TRF)

Rx to Rx

³20dB

Tx to Tx

³20dB

Feed Interfaces

WR112

WR112


R.F Specifications

16M Dual Shaped

Cassegrain Antenna With 4-PORT 2Tx/2Rx Linear POL Feed

C-Band

Receive

Transmit

Frequency in GHz*

3.625-4.200

5.850-6.425

Gain

55+

20lg[f(GHz)/4]

58.2+

20lg[f(GHz)/6]

Antenna Noise Temp.



5°Elevation

48k with TRF

10°Elevation

36k with TRF

20°Elevation

29k with TRF

40°Elevation

24k with TRF

Sidelobe Pattern

First sidelobe level ≤-14dB Beyond first sidelobe

meet IESS(Intelsat) or CCIR 580-5

Cross Pol. Discrimination

35dB (On axis) 30dB (within 1 dB Beamwidth)

VSWR

1.30:1(LP)

1.25:1(CP)

1.30:1(LP)

1.25:1 (CP)

3dB Beamwidth

0.30º

0.20º

Axial Ratio (CP only)

1.06:1

1.06:1

Feed Insertion or Ohmic

Loss

0.30dB

0.30dB

Power Handling

Capability

5kw cw per port

Port to Port Isolation



Tx to Rx

³85dB(with TRF)

Rx to Rx

³30dB

Tx to Tx

³30dB

Feed Interfaces

CPR-229G

CPR-137G

R.F Specifications

16M Dual Shaped

Cassegrain Antenna With 4-PORT 2Tx/2Rx Linear POL Feed

Full C-Band

Receive

Transmit

Frequency in GHz

3.4 -4.200

5.850-6.65

Gain

54.8+

20lg[f(GHz)/4]

58.2+

20lg[f(GHz)/6]

Antenna Noise Temp.



5°Elevation

54k with TRF

10°Elevation

46k with TRF

20°Elevation

36k with TRF

40°Elevation

30k with TRF

Sidelobe Pattern

First sidelobe level ≤-14dB Wide sidelobes meets

IESS, Eutelsat and CCIR 580.

Cross Pol. Discrimination

35dB (On axis) 30dB (within 1 dB Beamwidth)

VSWR

1.30:1(LP)

1.25:1(CP)

1.30:1(LP)

1.25:1 (CP)

3dB Beamwidth

0.30º

0.20º

Axial Ratio (CP only)

1.06:1

1.06:1

Feed Insertion or Ohmic

Loss

0.30dB

0.30dB

Power Handling

Capability

5kw cw per port

Port to Port Isolation



Tx to Rx

³85dB(with TRF)

Rx to Rx

³30dB

Tx to Tx

³20dB

Feed Interfaces

CPR-229G

CPR-137G






Antenna Specifications

Mechanical Specifications

Azimuth Travel

180°(in two overlapped 100°deg sectors)

Travel Rate for Az and El

0.1°/second

Elevation Travel

0°to 90°Continuous

Elevation Travel Rate

0.1°/second *

Tracking travel rate for Az and El

0.01°/second

Reflector

Steel

Pedestal Structure

Steel

Finish

Aluminium panels with high-diffusive white paint, steel part with Hot-Zinc Spray

Physical

Ambient Temperature

-40ºC to 60oC (survival) , -15ºC to 50oC (Operational)

Operational Wind

72km/h gusts to 97km/h

Survival Wind

200km/hm

Rain

up to 4 in/h(10cm/h), lasting 10 minutes

Relative Humidity

up to 100% with condensation

Solar Radiation

1000 kcal/M2/h

Radial Ice (Survival)

25mm on all surface or 13mm on all surface with 130km/h wind gusts

Shock and Vibration

As encountered during shipment by commercial air, sea or truck

Corrosive atmosphere

As encountered in coastal regions and/or heavily industrialized areas

Seismic(Survival)

0.3G’s horizontal 0.1G’s vertical
